Splay

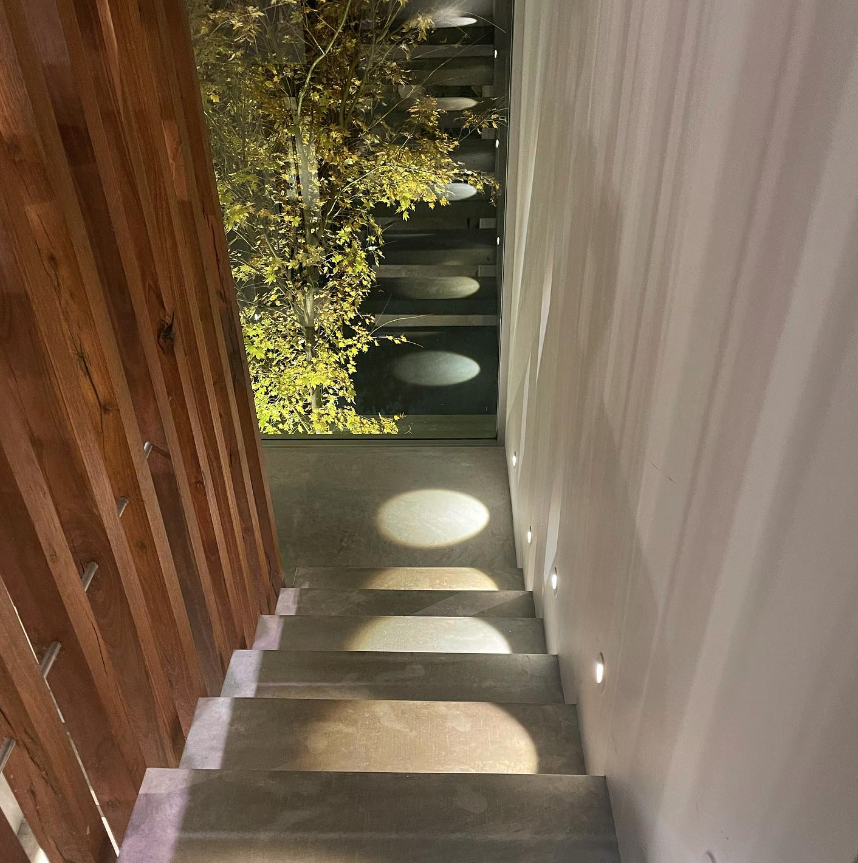

Splay offers recessed, low-level lighting tailored for interior use in hallways, bedrooms, and primary living areas, enriching the journey through your home with well-illuminated pathways. Additionally, it is well-suited for external use, serving as an effective lighting option for outdoor pathways and walkways.

SPECIFICATIONS

Power: 2W

Lumen Output: 180lm

Colour Temperature: 3000k

Beam Angle: 55°

Input: 700mA

Adjustability: Fixed

Cut Out: Ø68mm

IP Rating: IP54

Wiring Info: 240V to driver for internal use. 12V to driver for external use, wire in series

Depth: 25mm. Allow 10mm more

Notes: Optional wall box for concrete or block wall.

FINISH OPTIONS

Matte White

PRODUCT GALLERY

DOWNLOADS

Specification Data Sheet

Photometric IES Files

WIRING INFORMATION

Constant Current 700mA Drivers MUST be wired in series. See the below diagram on how to wire in series. Drivers are recommended to be set at 700mA with a maximum of 5 fittings on one driver.
