Frida Fixed

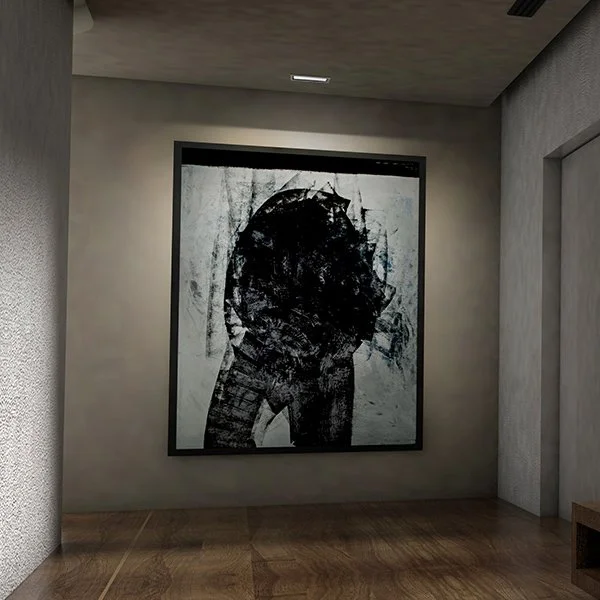

Frida is an artlighter designed for recessed installation. With its impressive 2-meter by 2-meter light distribution, it is ideal for illuminating artworks of any dimension.


SPECIFICATIONS

Power: 15W

Lumen Output: 920lm

Colour Temperature: 3000k

Beam Angle: Asymmetrical 2m x 2m Square

Input: 450mA - Low Voltage.

Adjustability: Fixed

Cut Out: 140mm x 36mm

Finishes: White/Black

IP Rating: IP20

Wiring Info: 240V to driver Remote or Local. I Fitting per driver

Depth: 46mm. Allow 10mm more in the ceiling

FINISH OPTIONS

Matte White



PRODUCT GALLERY

DOWNLOADS

Photometric IES Files

WIRING INFORMATION

Constant Current 350mA Drivers MUST be wired in series. See the below diagram on how to wire in series. Drivers are recommended to be set at 300mA with a maximum of 5 fittings on one driver.

DRIVER OPTIONS

  • • 12W/350mA Driver (Dimmable) - Remote Driver

    • 15W/350mA Driver (Dimmable) - Remote Driver

  • • 12W/350mA Driver (Dimmable) - Remote Driver

    • 36W/350mA Driver (Dimmable) - Remote Driver

  • • Integral CCT Local Driver (Dimmable)
