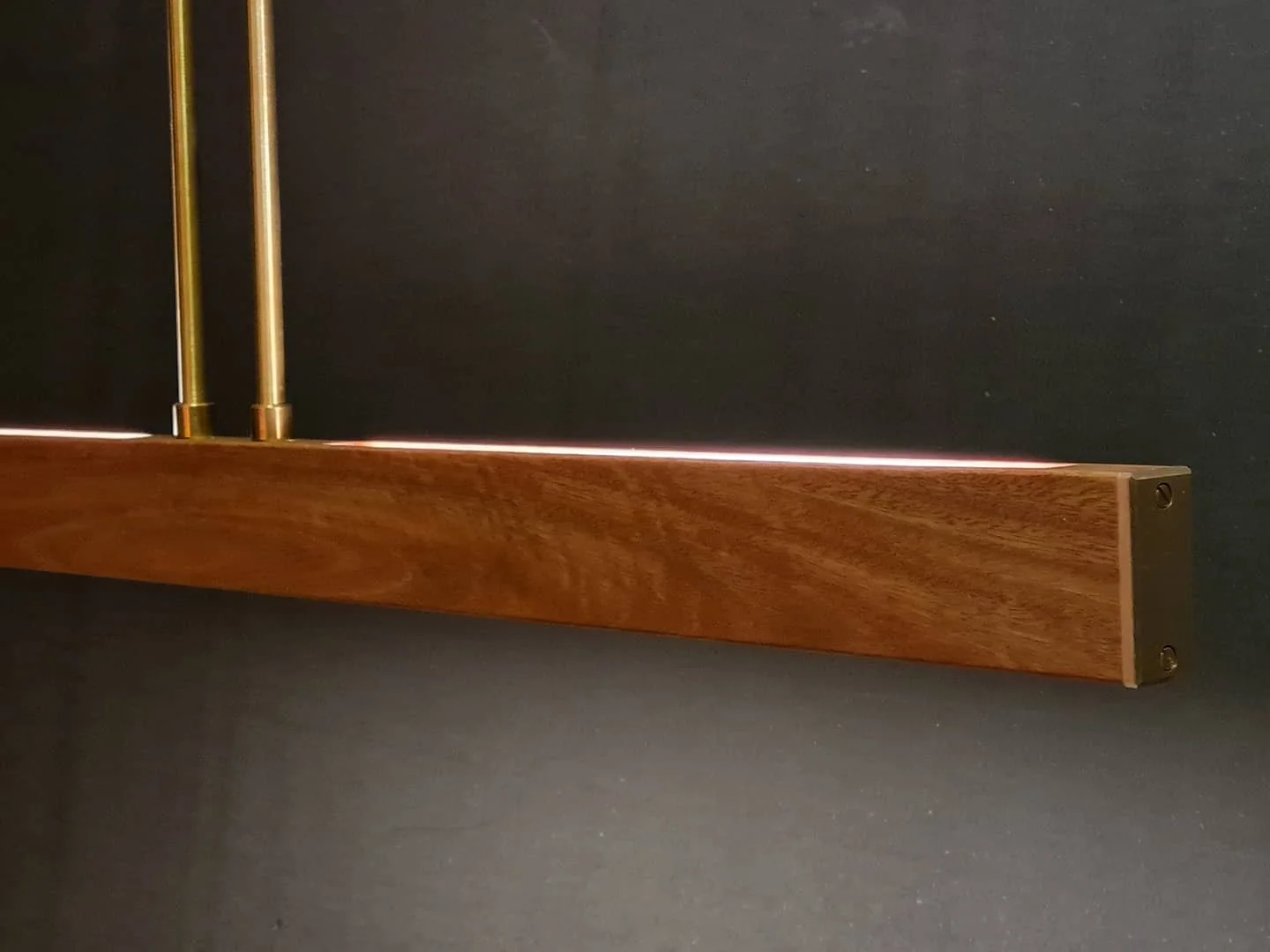

Earth Pendant

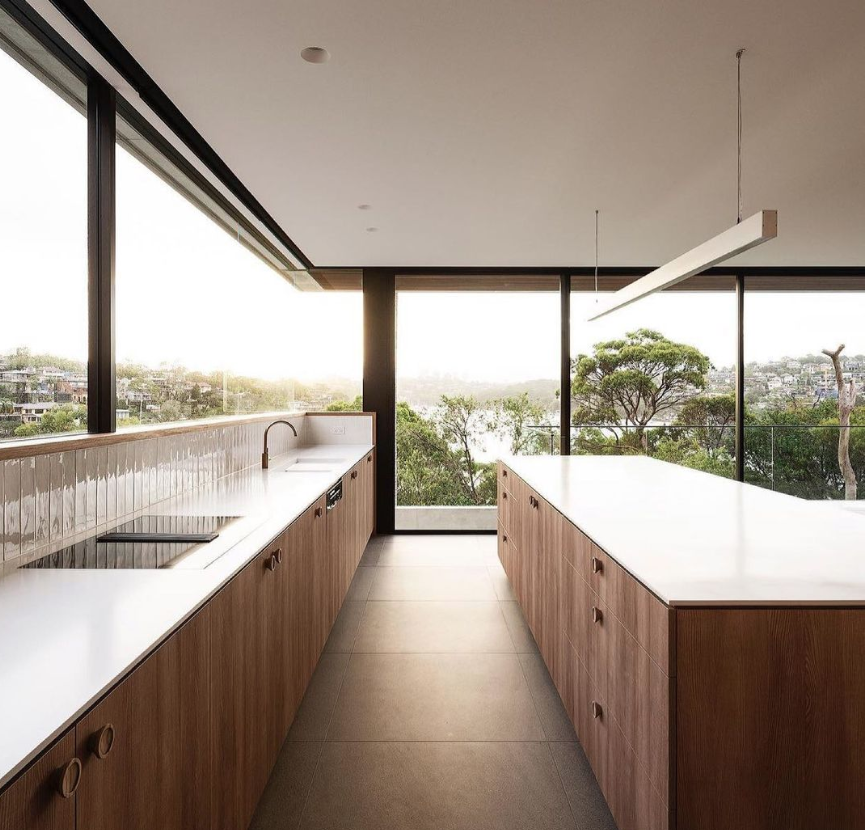

The Earth Pendant is a sleek, linear design, making it an ideal choice for illuminating spaces above kitchen islands or dining tables without obstructing your line of sight. Its minimalist aesthetic seamlessly blends with any setting while delivering efficient downward task lighting.
Additionally, this pendant offers versatility with an optional up-and-down version, allowing it to gently uplight the ceiling to accentuate architectural details and create a soothing ambient ambiance. Every aspect of this pendant can be customized, from the finish and trim to the length and rod options, ensuring it perfectly aligns with your unique preferences and needs.
SPECIFICATIONS
Power: 10W Continous Strip, 20W LED Strip - also available in CCT or CCT 2700K - 6000K
Colour Temperature: 2700k , 3000k or CCT 2700K - 6000K
Input: 24V - Driver remote
IP Rating: IP20
Wiring Info: Low Voltage - Driver Remote
The Earth Pendant offers customizable options including length, drop height, up/down lighting, rod finish, and base finish.
FINISH OPTIONS
Please be aware that due to the raw and organic nature of our finishes, each fitting may exhibit slight variations from one another or the images provided, as they are not identical.

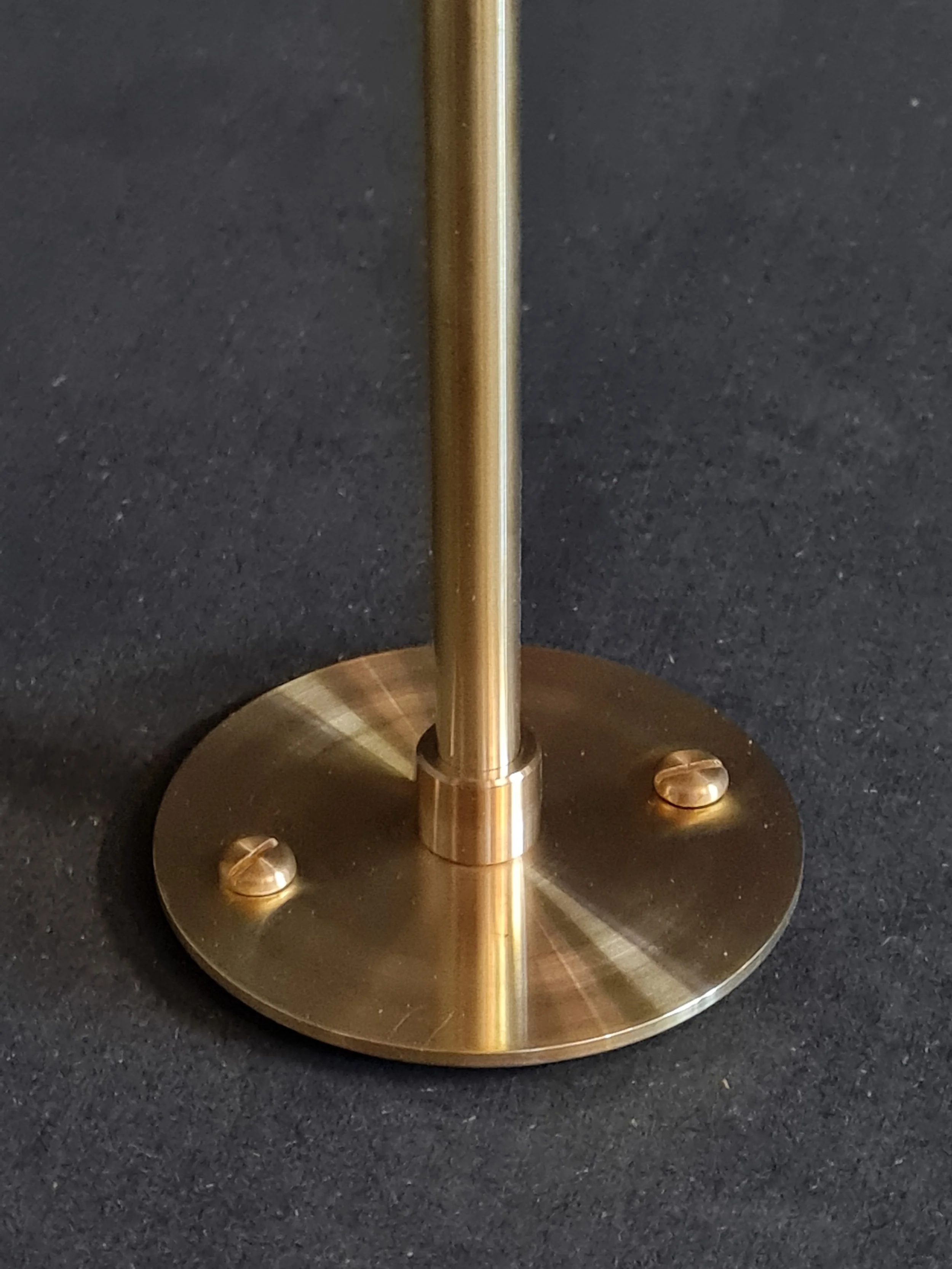

CANOPY OPTIONS
Canopy for Two Middle Rods
Canopy for Two Rods
Brass “Wild Patina’
Brass Dark Bronze
Brass Satin
Spotted Gum
Copper Satin
Copper Dark Bronze
Blackbutt
Tasmanian Oak
LED STRIP OPTIONS
-
• 10W Continuous 3000k IP20 Strip
• 10W Continuous IP66 3000k Strip
• 20W 3000k IP20 Strip
• 20W 3000k IP66 Strip
-
• 19.2W RGBW CCT IP20 Strip
CONTROL GEAR OPTIONS
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
-
• 75W/24V CCT DALI Driver (Dimmable) - Remote Driver
• 150W/24V CCT DALI Driver and Controller (Dimmable) - Remote Driver
• 150W/24V RGB DALI Controller (Dimmable) - Remote Driver
PRODUCT GALLERY
DOWNLOADS
Photometric IES Files
WIRING INFORMATION
Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
