20W LED Strip - IP65

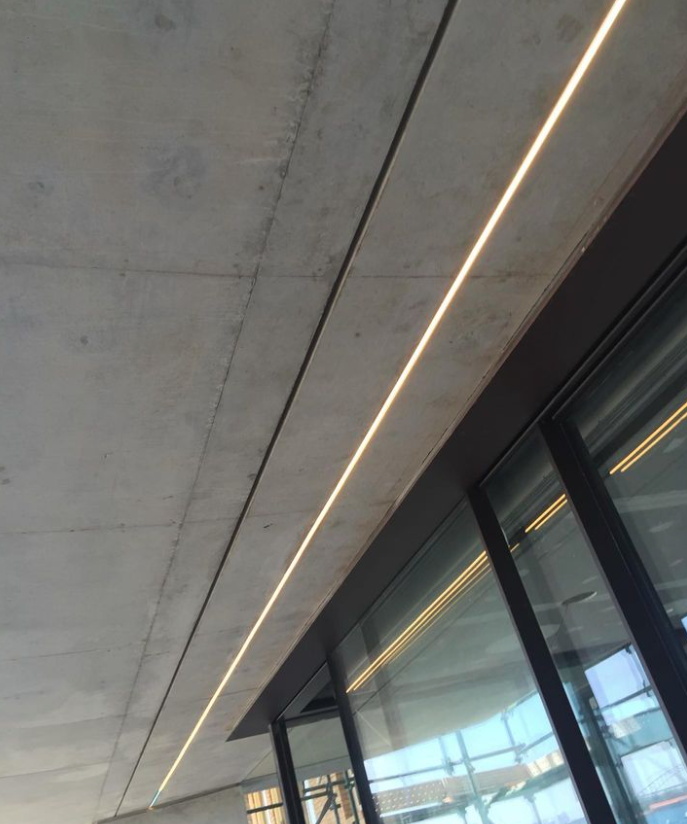

"The 20w strip is an LED lighting solution designed to provide a powerful and focused illumination, ideal for ceiling installations.
SPECIFICATIONS
Colour Temperature: 3000k
Power: 20W
Lumen Output: 1100lm
CRI: 80 - 95
Input:: 24v
Beam Angle: 120°
Wiring information: 240v to 12v driver. Driver Remote
IP Rating: IP65
Electrical Maintaince: Turn off power. Check Connections. Any electrical work to be carried out by a qualified electrical contractor.
CONTROL GEAR OPTIONS
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
WIRING INFORMATION
Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
