10W Continous Strip - IP65

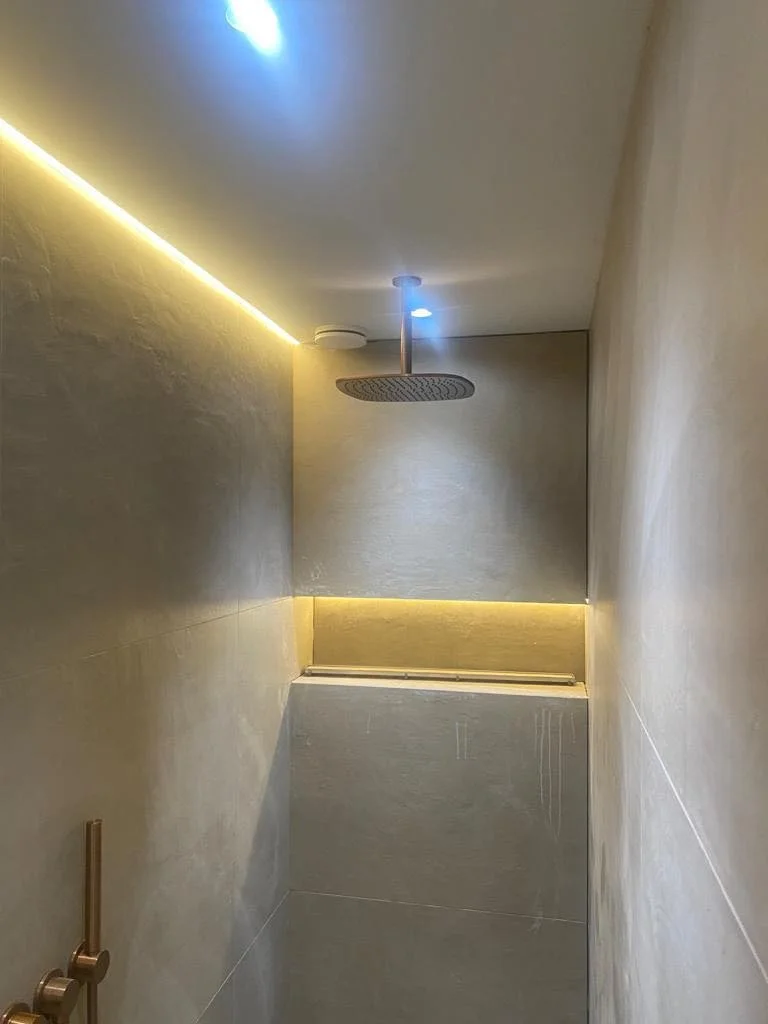

The 10w Continuous strip is an LED strip that delivers a seamless illumination, making it a perfect choice for shallow profile installations.
SPECIFICATIONS
Colour Temperature: 2700k
Power: 10W
Lumen Output: 900lm
CRI: 80 - 95
Input:: 24v
Beam Angle: 120°
Wiring information: 240v to 12v driver. Driver Remote
IP Rating: IP65
Electrical Maintaince: Turn off power. Check Connections. Any electrical work to be carried out by a qualified electrical contractor.
CONTROL GEAR OPTIONS
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
-
• 36W/24V Driver (Dimmable) - Remote Driver
• 75W/24V Driver (Dimmable) - Remote Driver
• 150W/24V Driver (Dimmable) - Remote Driver
• 240W/24V Driver (Dimmable) - Remote Driver
WIRING INFORMATION
Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
DOWNLOADS
Photometric IES Files
