Reveal

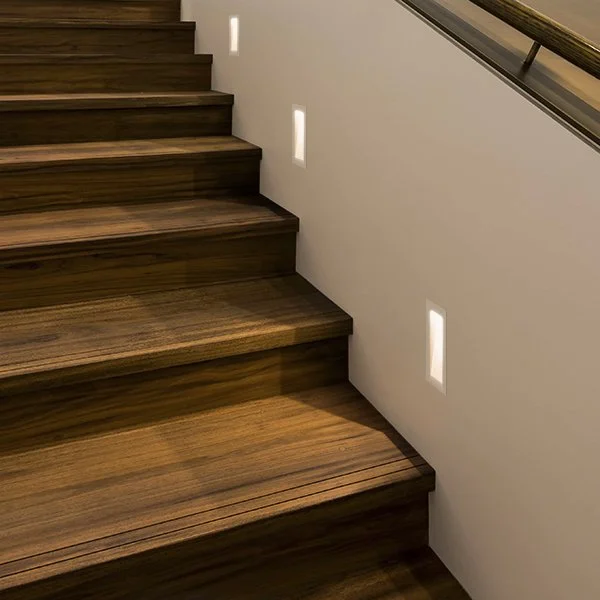

Reveal offers recessed, low-level lighting tailored for interior use in hallways, bedrooms, and primary living areas, enriching the journey through your home with well-illuminated pathways. Additionally, it is well-suited for external use, serving as an effective lighting option for outdoor pathways and walkways.

SPECIFICATIONS

Power: 3W

Lumen Output: 260lm

Colour Temperature: 3000k

Beam Angle: Asymmetric

Input: 700mA

Adjustability: Fixed asymmetric

Cut Out: 185mm x 55mm (fitting only) and 190mm x 56mm (with wall box)

IP Rating: IP54

Wiring Info: 240V to driver for internal use. 12V to driver for external use, wire in series

Depth: 35mm (fitting only) and 55mm (with wall box)

FINISH OPTIONS

Matte White

PRODUCT GALLERY

DOWNLOADS

Specification Data Sheet

Photometric IES Files

WIRING INFORMATION

Constant Current 700mA Drivers MUST be wired in series. See the below diagram on how to wire in series. Drivers are recommended to be set at 700mA with a maximum of 5 fittings on one driver.
