Holly
Holly is a recessed, low-level light suitable for interior use in hallways, bedrooms, and primary living areas, enriching the journey through your home with well-illuminated pathways.
SPECIFICATIONS
Power: 1.5W
Lumen Output: 100lm
Colour Temperature: 3000k
Beam Angle: N/A
Input: 24V
Adjustability: Fixed
Cut Out: 70mm x 40mm
IP Rating: IP22
Wiring Info: Driver Remote, Low Voltage to fitting
Depth: 32mm without wall box, 57mm with wall box
Notes: Optional wall box for concrete or block wall.
FINISH OPTIONS

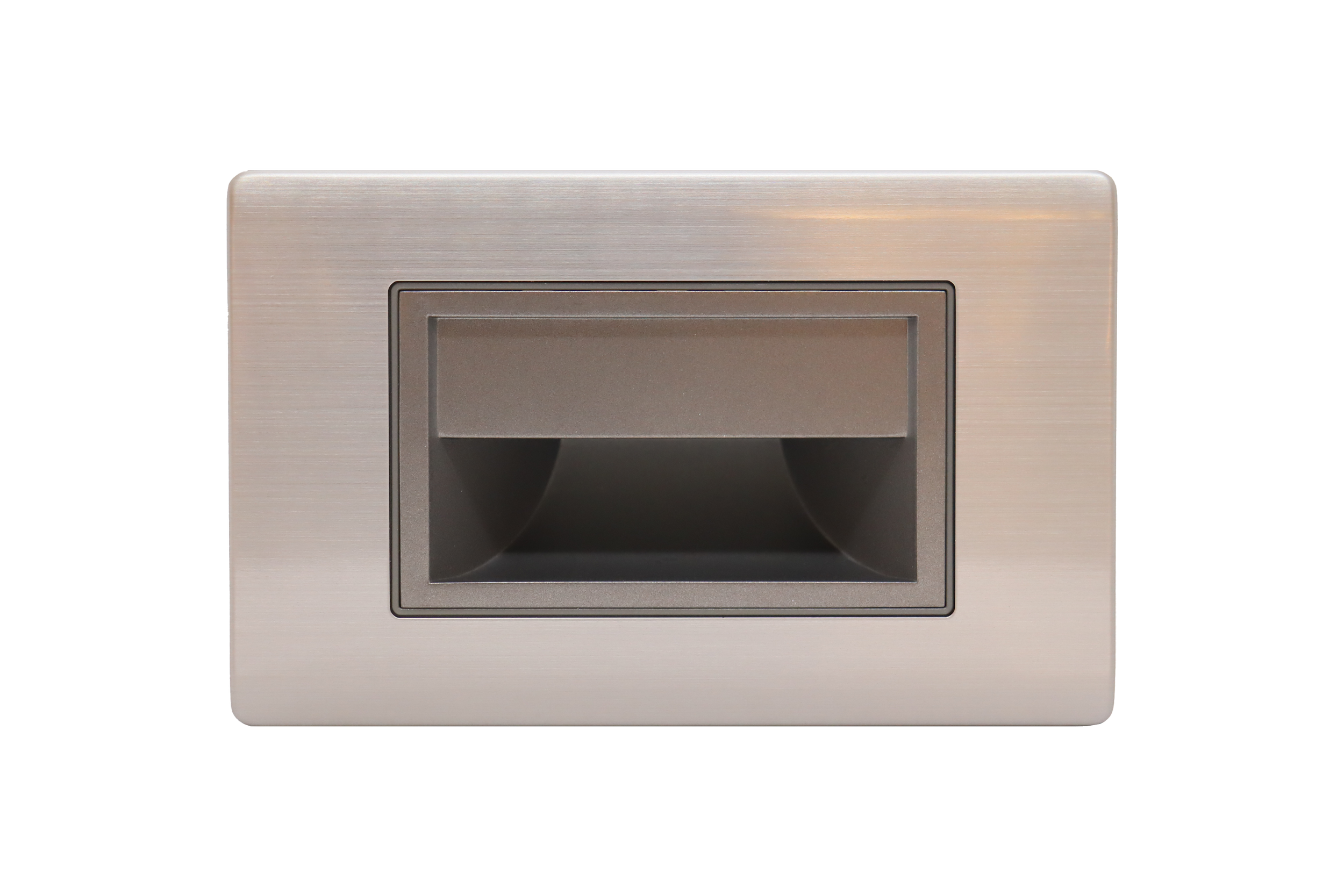

Brushed Grey

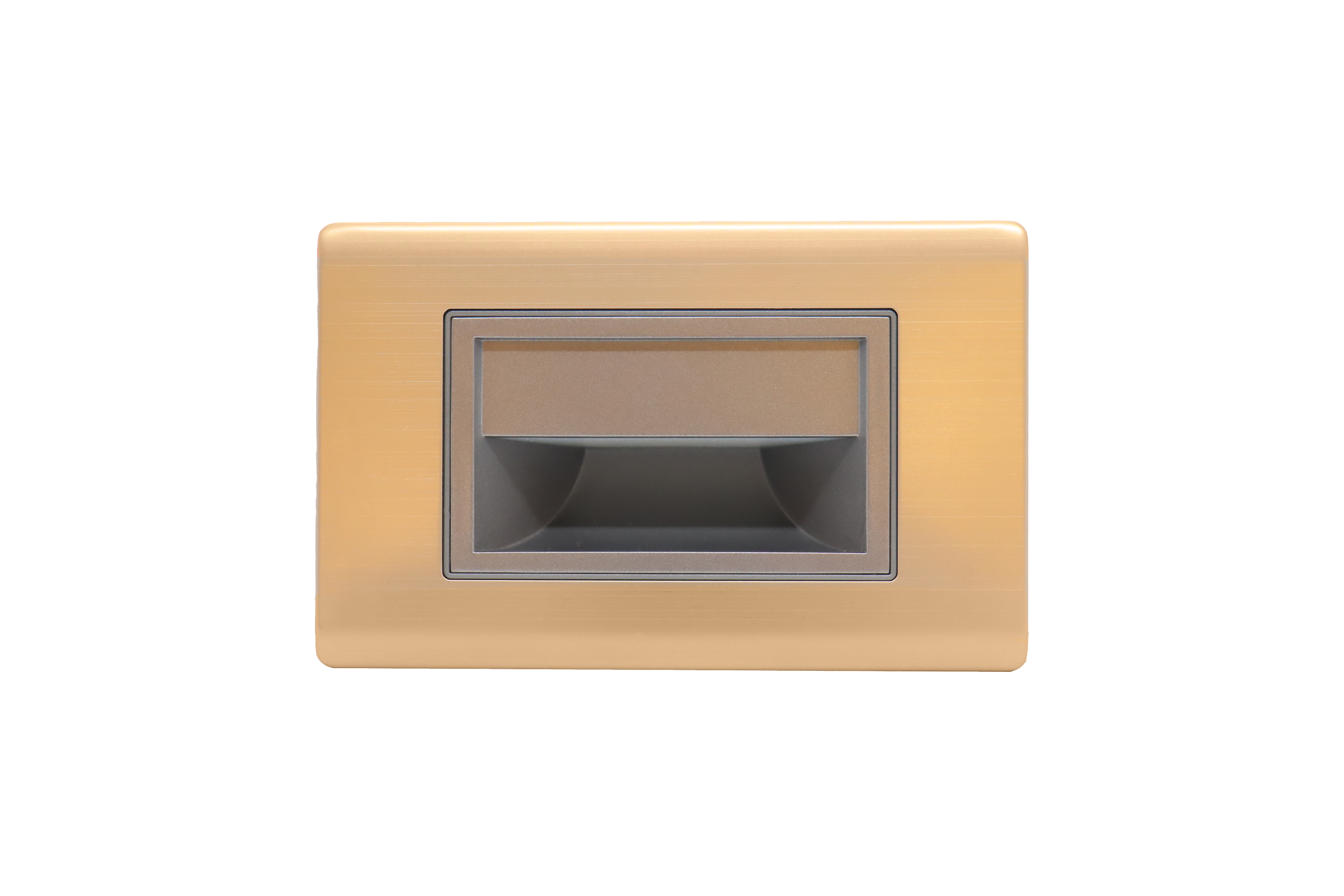

Brushed Gold
Brushed White
PRODUCT GALLERY
DOWNLOADS
Photometric IES Files
WIRING INFORMATION
DRIVER OPTIONS
-
• 36W/24V Driver - Remote Driver
• 75W/24V Driver - Remote Driver
-
• 36W/24V DALI Driver (Dimmable) - Remote Driver
• 75W/24V DALI Driver (Dimmable) - Remote Driver
Constant Voltage 24V Drivers MUST be wired in parallel. See the below diagram on how to wire in parallel.
Electricians must use silicon-based heat shrink to secure the back of the fitting, ensuring there is no water leakage and allowing for proper drainage during careful installation to prevent water damage.
Failure to adhere to these guidelines will result in voiding the warranty.
