Hush Round

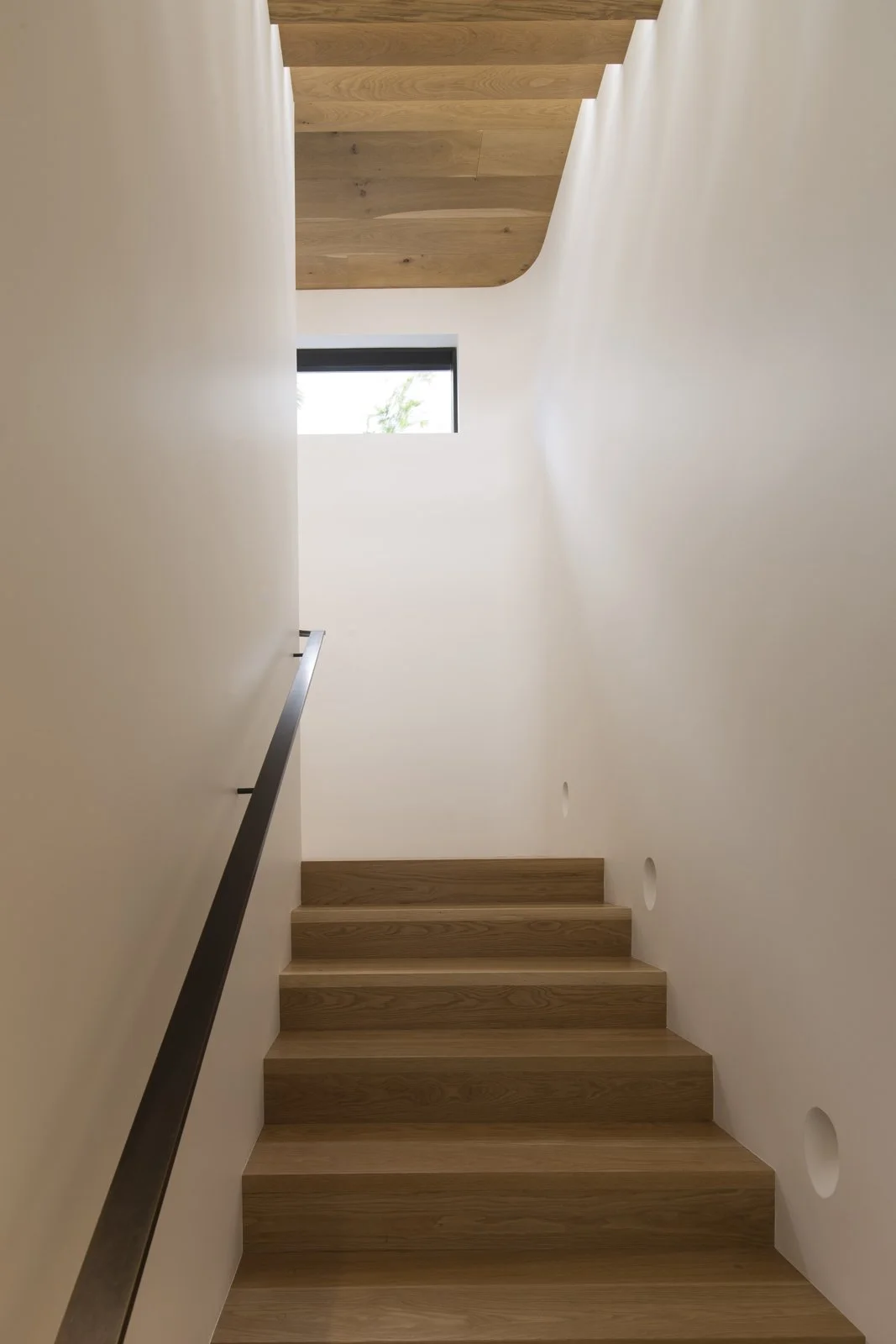

Hush Round is an in-set plaster low-level light, crafted from Gypsum. Ideal for illuminating pathways in primary spaces like entrances, corridors, living rooms, bedrooms, and any area where you desire a refined and seamless appearance. It blends beautifully into plasterboard walls when set in, creating a smooth and sculpted light recess.

Hush Rounds globes are changeable, allowing for easy maintenance.

SPECIFICATIONS

Power: 1W

Lumen Output: 120lm

Colour Temperature: 3000k

Beam Angle: 30°

Input: 300mA

Cut Out: 248mm x 163mm

IP Rating: IP20

Wiring Info: 240V to driver. Driver remote. If more than one fitting, wire in series.

Depth: 68mm. Allow 10mm more

FINISH OPTIONS

Plaster/Gypsum

WIRING INFORMATION

Constant Current 350mA Drivers MUST be wired in series. See the below diagram on how to wire in series. Drivers are recommended to be set at 300mA with a maximum of 5 fittings on one driver.

INSTALLATION INSTRUCTIONS

1. Cut the paper tape into small pieces to cover the circular shape.
2. Create hole markings on the side aluminium clips to secure the fitting in the desired positions.
3.. Apply plaster over the raised set-bead. Then, use a damp cloth to smooth down the edges for subsequent coats.
See the download section for installation videos
We would suggest the below two methods.
1. Attach the fitting to a piece of timber to screw it in, with this you can adjust it to suit the location/positioning. Laser the wall/position. Finish with rendering the fitting and wall.
2. Use cement foam as an alternative to the timber, hold it till it dries and takes the place of shape, same as the above this can then be adjusted to suit the positioning of the fitting. Finish off with rendering
See the download section for bracket photos.

CONTROL GEAR OPTIONS

• 12W/350mA Driver (Dimmable) - Remote Driver
• 15W/350mA Driver (Dimmable) - Remote Driver
• 12W/350mA Driver (Dimmable) - Remote Driver
• 36W/350mA Driver (Dimmable) - Remote Driver
